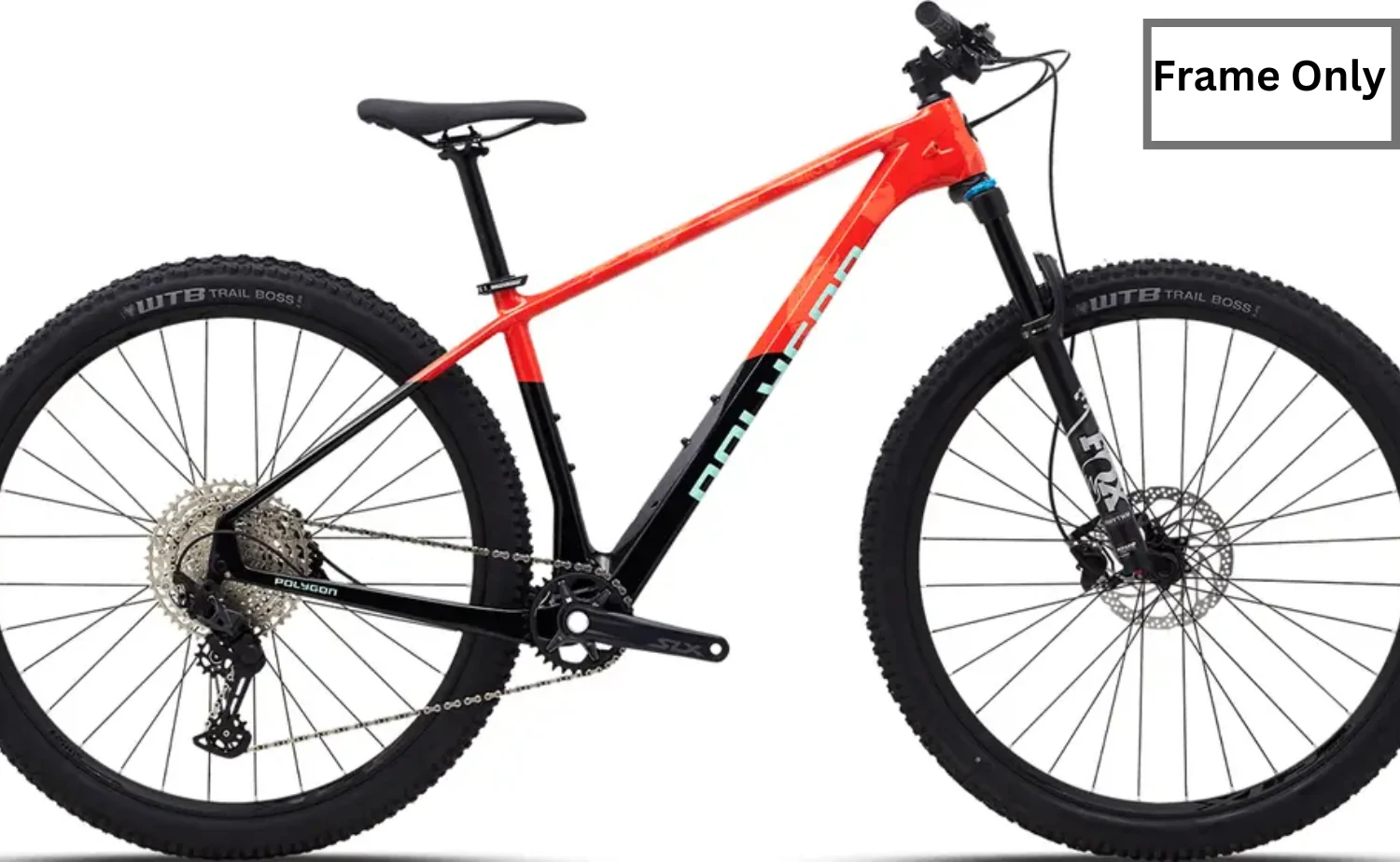

A true ACX carbon hardtail frame for fast XC laps and efficient trail rides. Light, stiff and built around a 120 mm fork with modern geometry to keep you quick on climbs and composed on descents.
Frame only — no fork or small parts included.
Fit notes
• Headset: IS42/28.6 upper | IS52/40 lower (integrated, tapered)
• Seatpost: 27.2 mm
• BB: PressFit BB92 (Shimano MT500-PA compatible)
• Fork: 120 mm travel, tapered steerer
• Wheel size: 27.5" (S/M) or 29" (M/L/XL)
Description
A true ACX carbon hardtail frame for fast XC laps and efficient trail rides. Light, stiff and built around a 120 mm fork with modern geometry to keep you quick on climbs and composed on descents.
Frame only — no fork or small parts included.
Fit notes
• Headset: IS42/28.6 upper | IS52/40 lower (integrated, tapered)
• Seatpost: 27.2 mm
• BB: PressFit BB92 (Shimano MT500-PA compatible)
• Fork: 120 mm travel, tapered steerer
• Wheel size: 27.5" (S/M) or 29" (M/L/XL)
